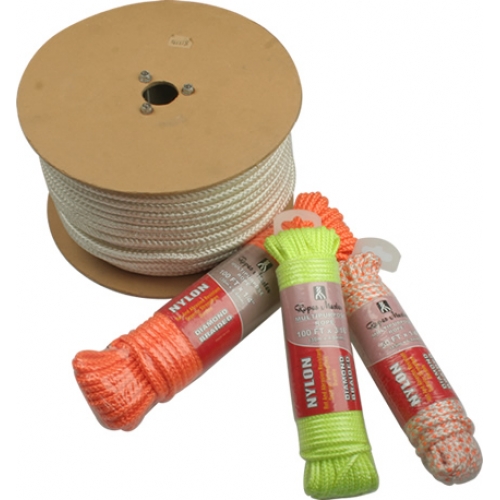

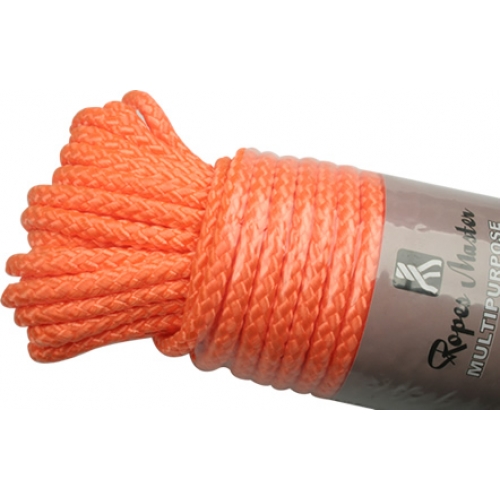

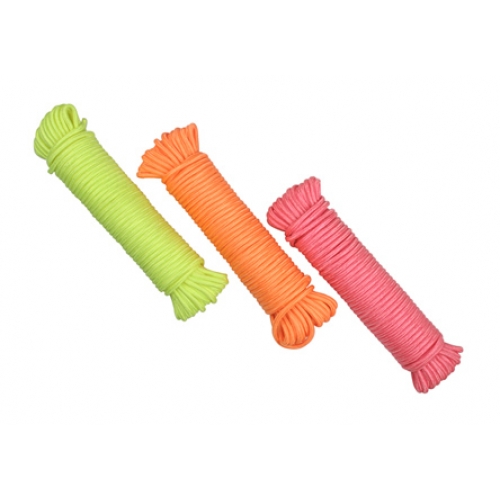

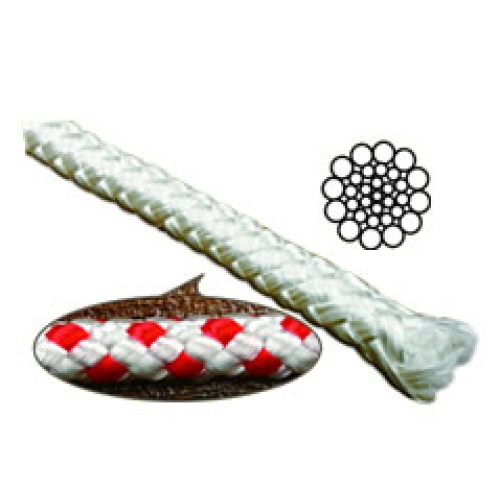

NYLON DIAMOND BRAIDED ROPE
It is a top quality and all purpose rope. It resists abrasions, sunlight, rot and mildew. It is not affected by most chemicals. Grips around cheats better than nylon. It is suitable for a variety of applications, including draw string, starter cord, and general use applications.
| Professional High Strength fabric Core | Standard Nylon Core | Promotional Non-Woven Core | |||||||||||
| Diameter | Weight | Tensile Breaking Force | Weight | Tensile Breaking Force | Weight | Tensile Breaking Force | |||||||
| mm | inch | kg/100m | lb/100ft | kg | lb | kg/100m | lb/100ft | kg | lb | kg/100m | lb/100ft | kg | lb |
| 3 | 1/8 | 0.65 | 0.44 | 180 | 396 | 0.65 | 0.44 | 144 | 317 | 0.49 | 0.33 | 80 | 176 |
| 4 | 5/32 | 1.05 | 0.70 | 270 | 594 | 1.05 | 0.70 | 216 | 475 | 0.79 | 0.53 | 120 | 264 |
| 5 | 3/16 | 1.48 | 0.99 | 360 | 792 | 1.48 | 0.99 | 288 | 634 | 1.11 | 0.75 | 160 | 352 |
| 6 | 7/32 | 1.83 | 1.23 | 450 | 990 | 1.83 | 1.23 | 360 | 792 | 1.38 | 0.92 | 200 | 440 |
| 7 | 1/4 | 2.18 | 1.46 | 563 | 1238 | 2.18 | 1.46 | 450 | 990 | 1.64 | 1.10 | 250 | 550 |
| 8 | 5/16 | 3.86 | 2.59 | 720 | 1584 | 3.86 | 2.59 | 576 | 1267 | 2.90 | 1.95 | 320 | 704 |
| 10 | 3/8 | 5.97 | 4.01 | 900 | 1980 | 5.97 | 4.01 | 720 | 1584 | 4.49 | 3.01 | 400 | 880 |
| 12 | 1/2 | 10.03 | 6.73 | 1238 | 2723 | 10.03 | 6.73 | 990 | 2178 | 7.54 | 5.06 | 550 | 1210 |
| 14 | 9/16 | 12.46 | 8.36 | 1425 | 3135 | 12.46 | 8.36 | 1140 | 2508 | 10.38 | 6.97 | 950 | 2090 |
| 16 | 5/8 | 15.08 | 10.12 | 1700 | 3740 | 15.08 | 10.12 | 1360 | 2992 | 12.57 | 8.43 | 1133 | 2493 |
| 18 | 3/4 | 20.98 | 14.08 | 2375 | 5225 | 20.98 | 14.08 | 1900 | 4180 | 17.49 | 11.73 | 1583 | 3483 |
| 20 | 13/16 | 23.41 | 15.71 | 2750 | 6050 | 23.41 | 15.71 | 2200 | 4840 | 19.51 | 13.09 | 1833 | 4033 |
| 22 | 7/8 | 28.20 | 18.92 | 3125 | 6875 | 28.20 | 18.92 | 2500 | 5500 | 23.50 | 15.77 | 2083 | 4583 |
| 25 | 1 | 36.72 | 24.64 | 3750 | 8250 | 36.72 | 24.64 | 3000 | 6600 | 30.60 | 20.53 | 2500 | 5500 |
